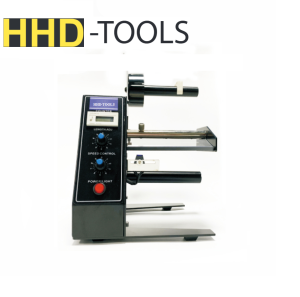

Product Description:
| Model | Specifications: ((W×H×L) | speed | label width | The maximum diameter | power supply | weight |
| 600-110SC
600-130SC 600-180SC |
136×174×280mm
166×174×280mm 216×174×280mm |
130mm/sec | 5-100mm
5-130mm 5-180mm |
250mm | 110/220V 50/60Hz | 3.6kg
4.1kg 6.0kg
|
Product features:
1. Low failure rate, easy to use, compact and easy to store.
2. Electronic control system, fully automatic peeling, the label is smooth and wrinkle-free .
3. Simple operation, one machine can be used by multiple people.
4. Automatic counting 0-999999 to facilitate the automation of output management.
5. Label types: self-adhesive labels, barcodes, anti-counterfeiting, laser, packaging labels, etc.
6. Applicable industries: electronic manufacturing industry, chemical pharmaceutical industry, food processing industry, logistics and distribution industry.
Instructions:
1. Hang the label paper roll. Hang the label roll on the label hanging plate and fix it with the positioning plate.
2. Clamp in the guide plate. Sandwich the label paper between the middle poles of the paper feeding guide into a U shape, and adjust the guide according to the width of the label.
3. Hang the label paper on the paper roller. Open the upper device and hang the labels on the 3 poles of the reel.
4. Cover the interlocking lever. Press the interlock lever until it clicks into place.
5. Power switch. Turn on the power switch on the rear right.
6. When using. When removing the label, peel it from bottom to top.
